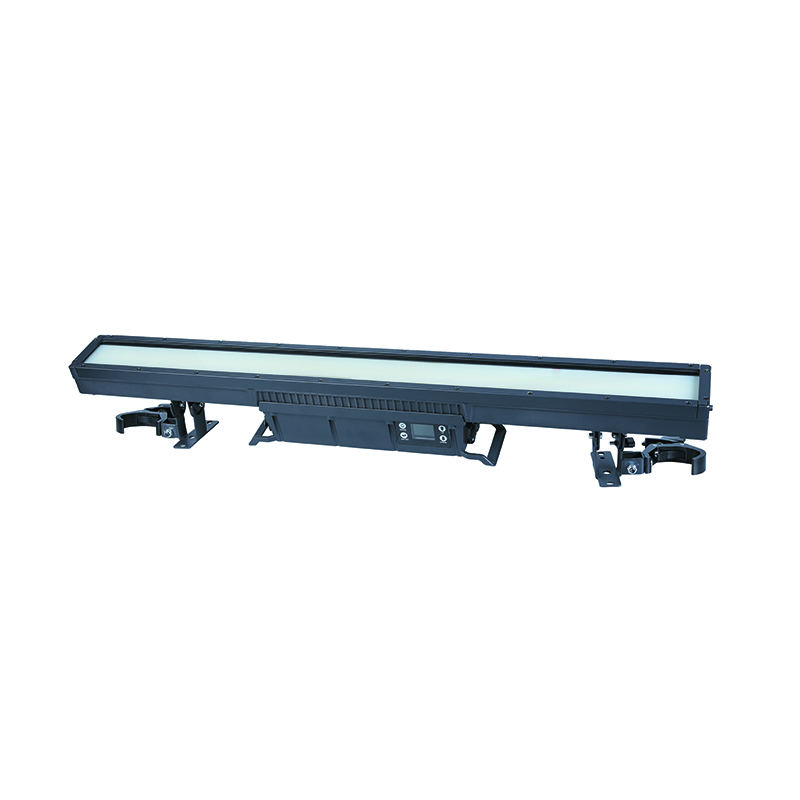

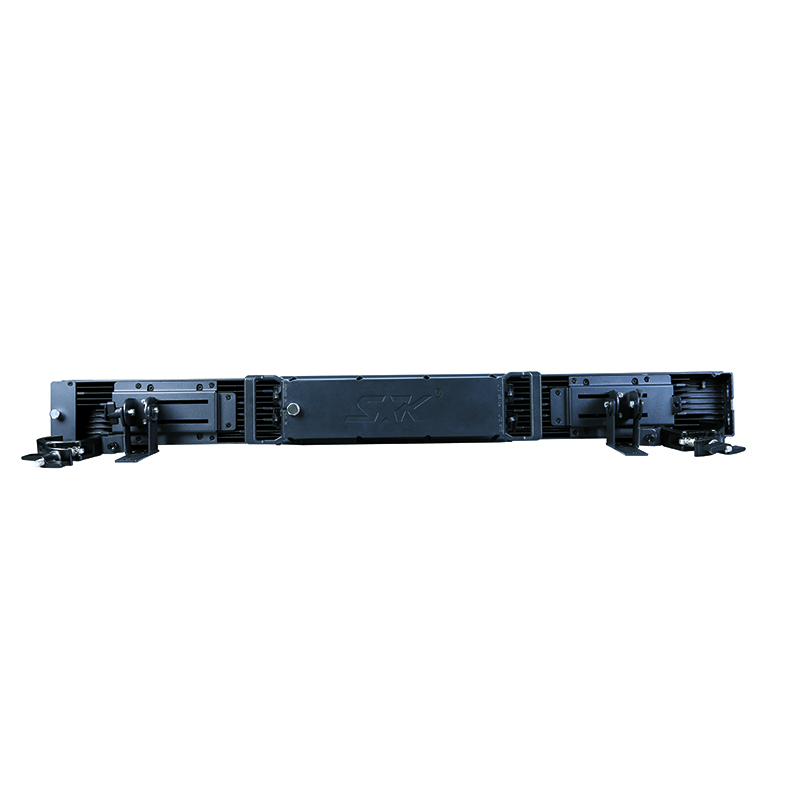

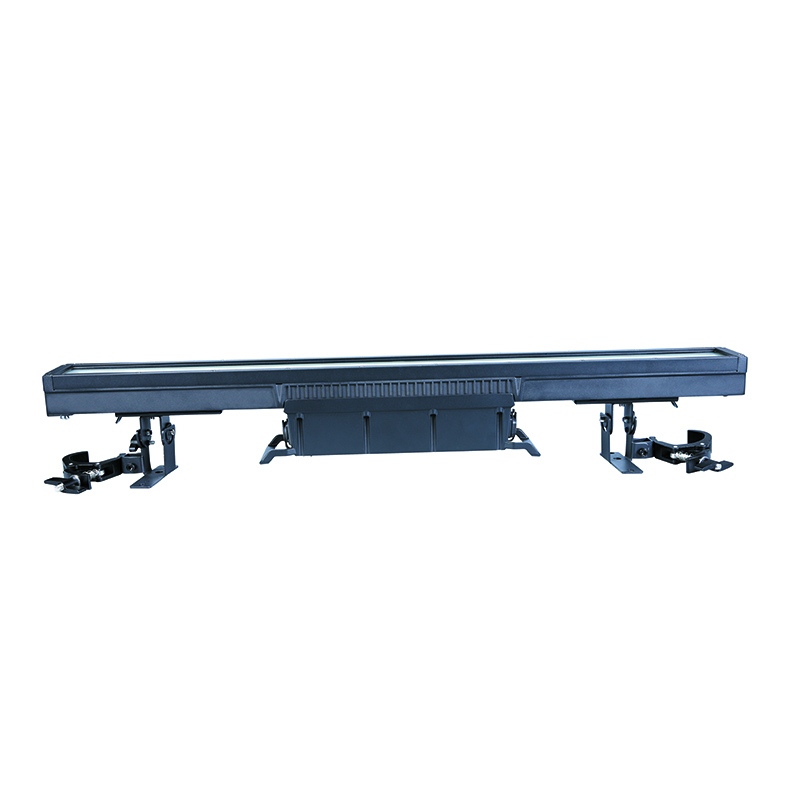

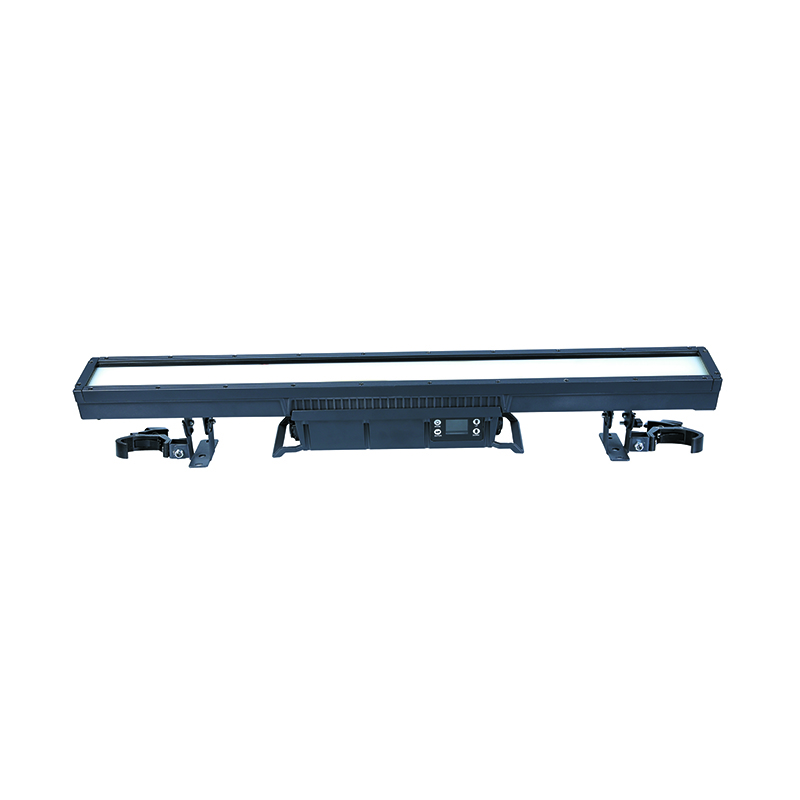

SPL-LED-S500IP Ⅱ
SPL-LED-S500IP Ⅱ
Detailed Introduction
Electrical Parameters
Input Power: AC100-240V
Power Frequency: 50/60Hz
Power Consumption: 440W
LED Parameters
LED Source: Strobe 0.6W * 672 pcs, White 3W * 112 pcs, Color Temperature: 7000K
LED Type: RGB + White (4-in-1)
Average Lifespan: >50,000 hours
Features
Dimming: 0-100% Linear Adjustment
Electronic Dimming/Hazing: 1-100%
Sections: White Light - 16 controllable sections; RGB - 32 controllable sections
LED Count: White - 112 pcs (300W); Strobe - 672 pcs (300W)
Actual Power: White Light - 300W; Strobe - 300W
Characteristics: Strobe + Color Wash + Effect + Hazing
Control Methods
Channel Modes: 7CH / 15CH / 17CH / 21CH / 33CH / 39CH / 65CH / 68CH / 70CH / 112CH / 117CH
Control Modes: DMX512, Auto, Master/Slave, RDM
Cooling: Fan Cooling
Ingress Protection (IP) Rating: IP65
Maximum Operating Temperature: 45°C
Housing Color: Black
Input/Output
DMX Connector: Waterproof 3-Pin XLR Metal Connector (In & Out)
Power Connector: Waterproof Socapex-style Power Connector (In & Out)
Physical Specifications
Product Dimensions: 1009 * 100.9 * 149 mm
Net Weight: 8 kg
